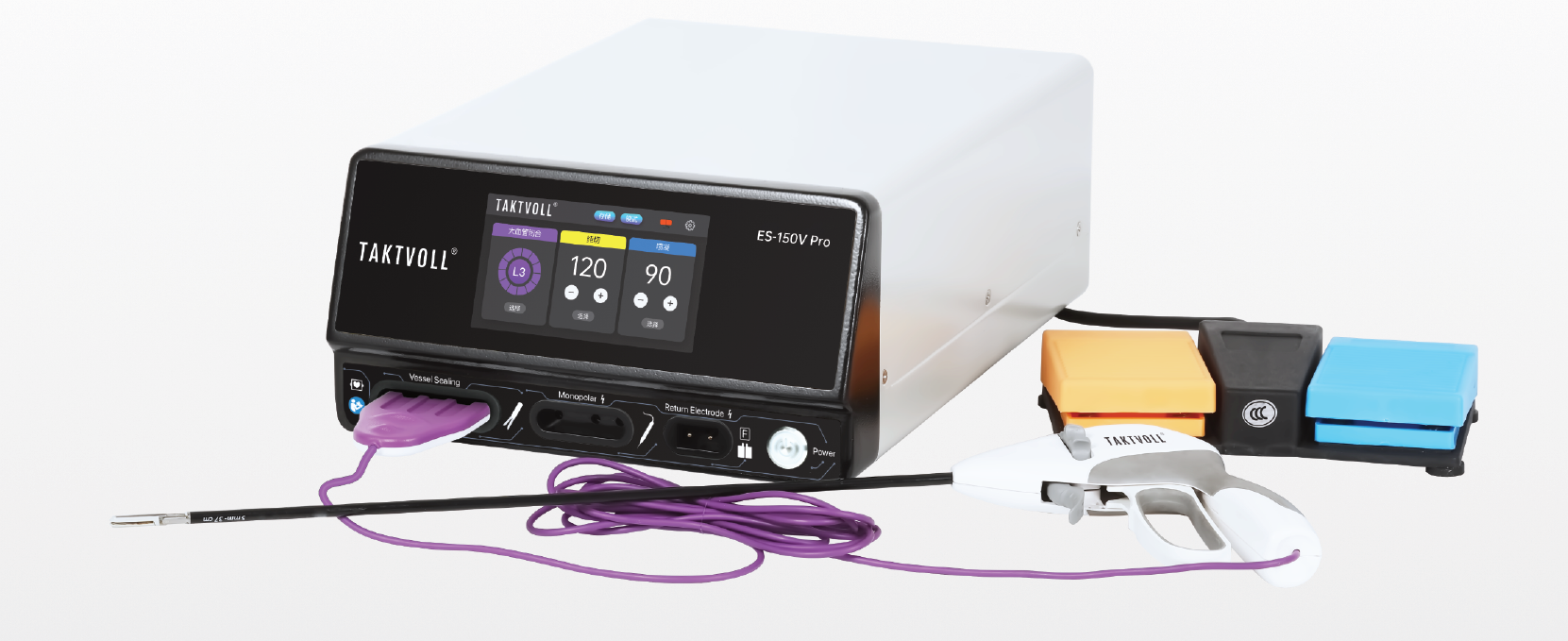

ES-100V PLUS Electric LCD Touchscreen Electrosurgical Generator

Portable Electricity Multi-channel Intraoperative Neuromonitoring SystemVS10 Electric Ligasure Vessel Sealing System Generator

Featuring a full glass panel design, equipped with a colorful touch-screen interface and integrated melody sound effects, the device is compact, portable, easy to operate, and intelligently secure. Suitable for both laparoscopic and open surgeries, it can seal blood vessels up to 7mm in diameter while intelligently assessing the sealing effect, bringing a new level of experience and convenience to surgical procedures!

ETA 2-4 weeks

Add to wishlist

Compare

Category: Surgical Tag: Electrosurgical Unit

Description
Reviews (0)

Description

ES-100V PLUS Electric LCD Touchscreen Electrosurgical Generator

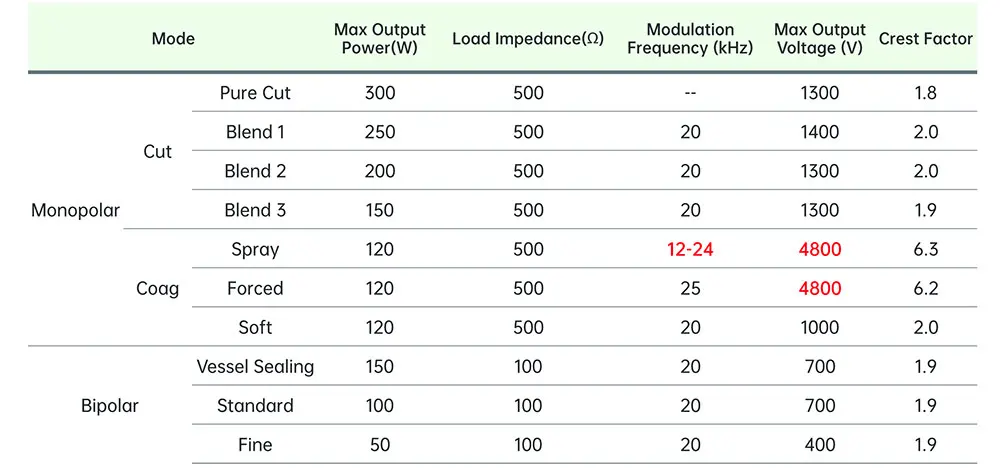

Feature

3 Cutting Modes
Pure Cut: Provides clean and precise cutting of tissue.
Blend 1: Used when a slightly slower cutting speed and minimal hemostasis are required (70% cutting, 30% coagulation).
Blend 2: Used when a slightly slower cutting speed with enhanced hemostasis is needed (50% cutting, 50% coagulation).

2 Coagulation Modes
Spray Coagulation: Non-contact, efficient surface coagulation with shallow penetration depth. Tissue is removed through evaporation, typically using a knife-shaped or ball-shaped electrode. This method minimizes tissue damage depth.
Forced Coagulation: Non-contact coagulation with lower peak output voltage compared to spray coagulation. Suitable for small areas of coagulation, providing moderate thermal penetration and rapid, effective standard coagulation with minimal carbonization effects.

Vessel Sealing Mode
Vessel Sealing: Capable of sealing blood vessels up to 7mm in diameter without extensive dissection. Blood vessels and tissue bundles can be sealed without the need for anatomical separation, offering a simple and efficient operation.

Bipolar Mode
Standard: Suitable for most bipolar applications. Maintains low voltage to prevent sparking and ensures gentle tissue coagulation, reducing carbonization and adhesion.

Large blood vessel sealing function-sealing vessels up to 7 mm.

Smart Interactionon a7-Inch Touch Screen Clean Ul, flexible touchscreendesign, 10 modes, meeting allsurgical needs comprehensively. Simultaneous dualelectrosurgical pencil output Supports monopolar, bipolar, andlarge vessel sealing instruments forhigh-performance cuttingcoagulation, and vascular sealing. Return Electrode Minitor(REM) Detects resistance changes. When theresistance exceeds the set value, theREM alarm system activates, haltingthe output of the high-frequencysurgical equipment to ensure safety. Startup Self-Test Function After startup, the device canautomatically detect errorcodes and provide automaticerror alerts.
