Description

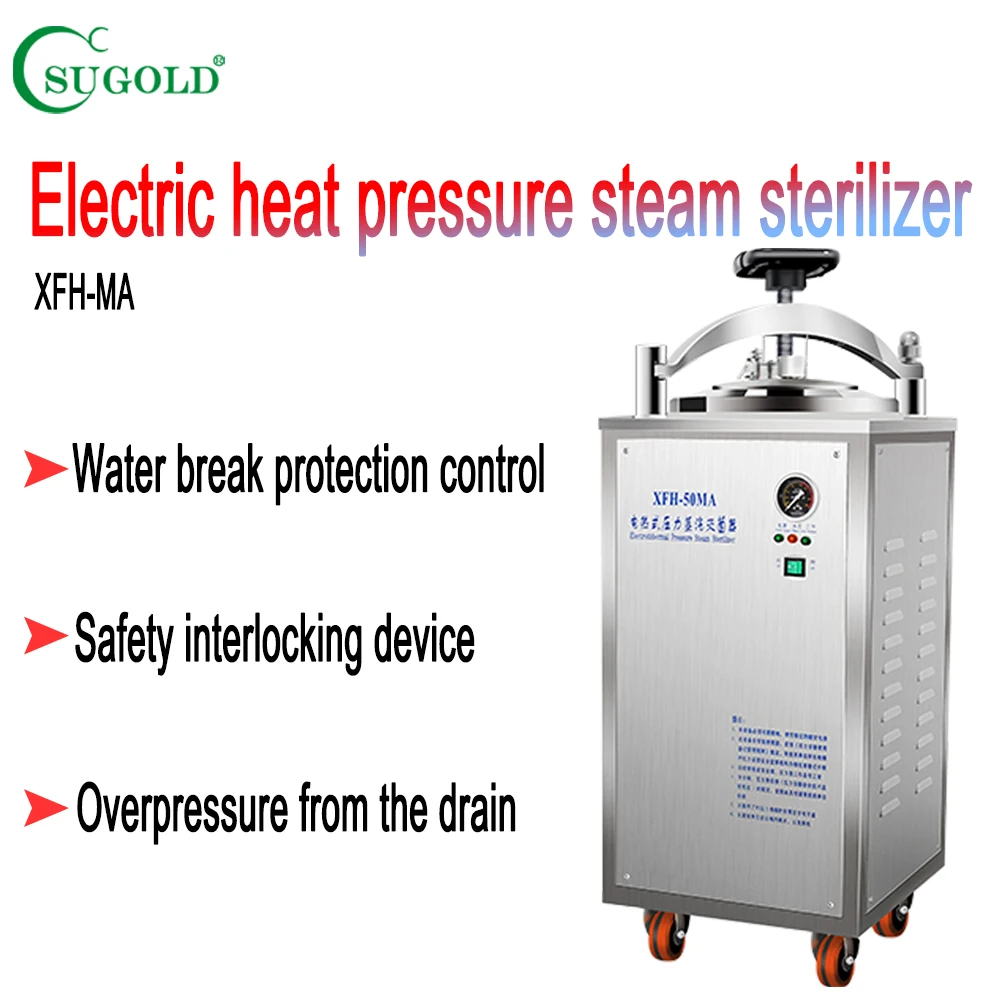

40L electrothermal pressure steam sterilizer/ laboratory autoclave
Product Description
40L electrothermal pressure steam sterilizer/ laboratory autoclave
40L electrothermal pressure steam sterilizer/ laboratory autoclave
PRODUCT CHARACTERISTIC:
Auto-control type with drying function

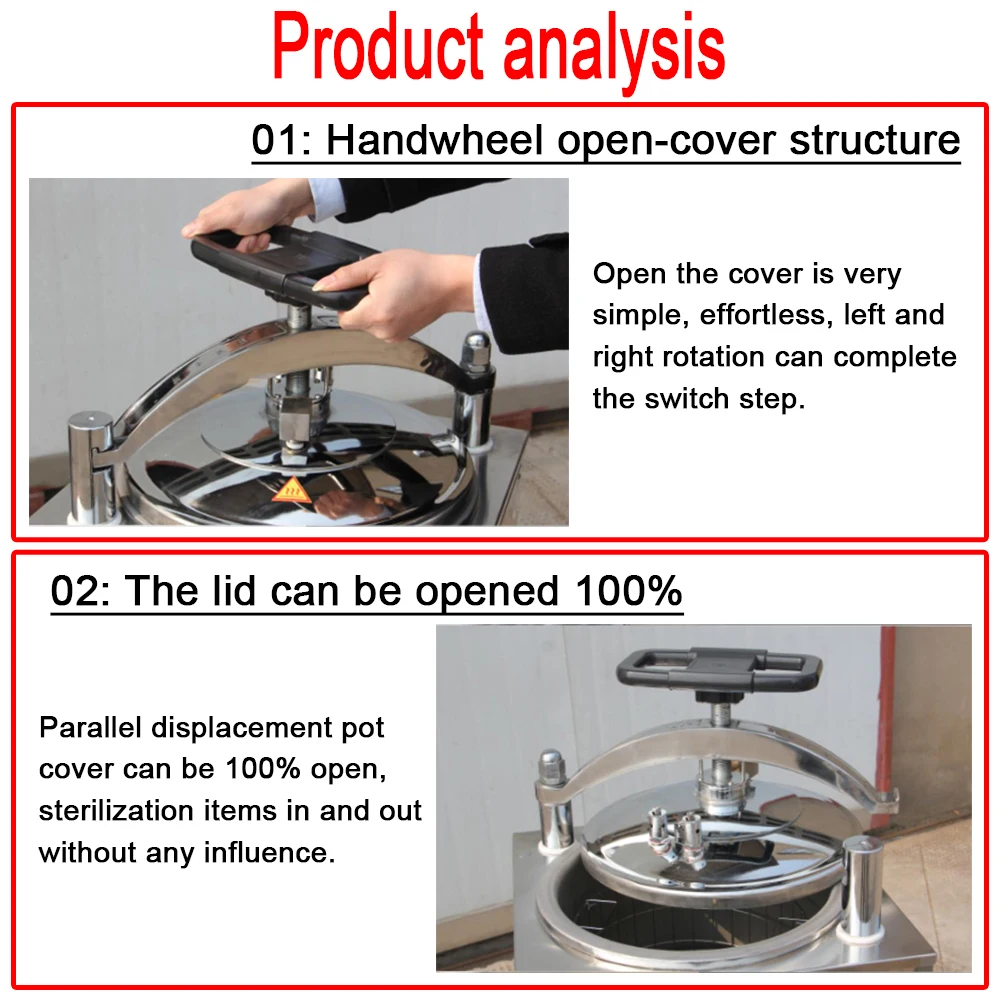

Structure of handwheel type quick-door-open safety interlock device (accord with the 49th requirement of Vessel Regulations)

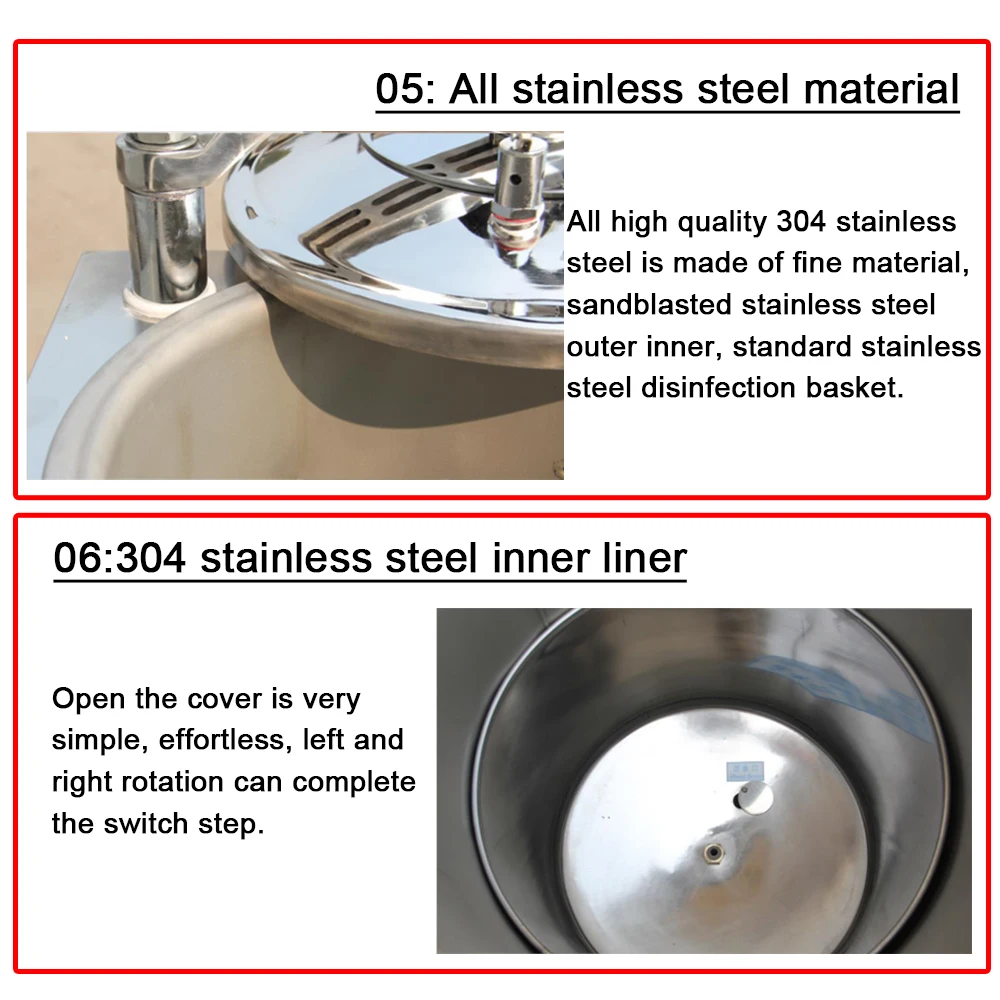

Material: outer and chamber are made of high quality stainless steel SUS304, acidproof, alkali resistance, anti-corrosive
Microcomputer intelligent control

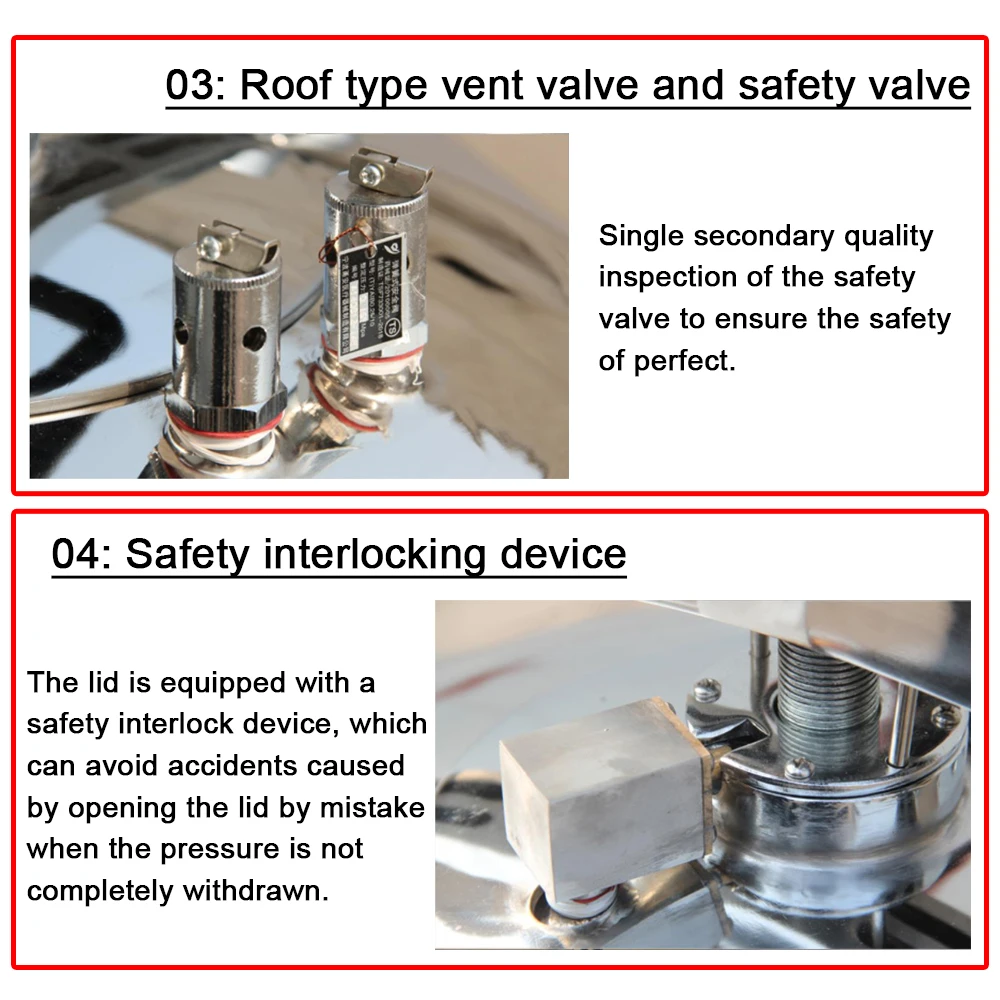

Pressure safety interlock device, over temperature protection device
Auto-raising type packing ring,exhaust cold air automatically
Auto-exhause when over pressure, low water level alarm, auto-control when lack of water
Temperature range (109 -135 ), sterilization time range (4-120min), drying time range (drying after sterilization) (30-240min),
Max. design/work pressure (0.25MPa-0.22MPa)
Inner circulation exhaust type, with 3L steam collection bottle
Automatic inlet, heating, sterilization, exhaust and drying
Buzzer reminds after work and close-down automatically
|

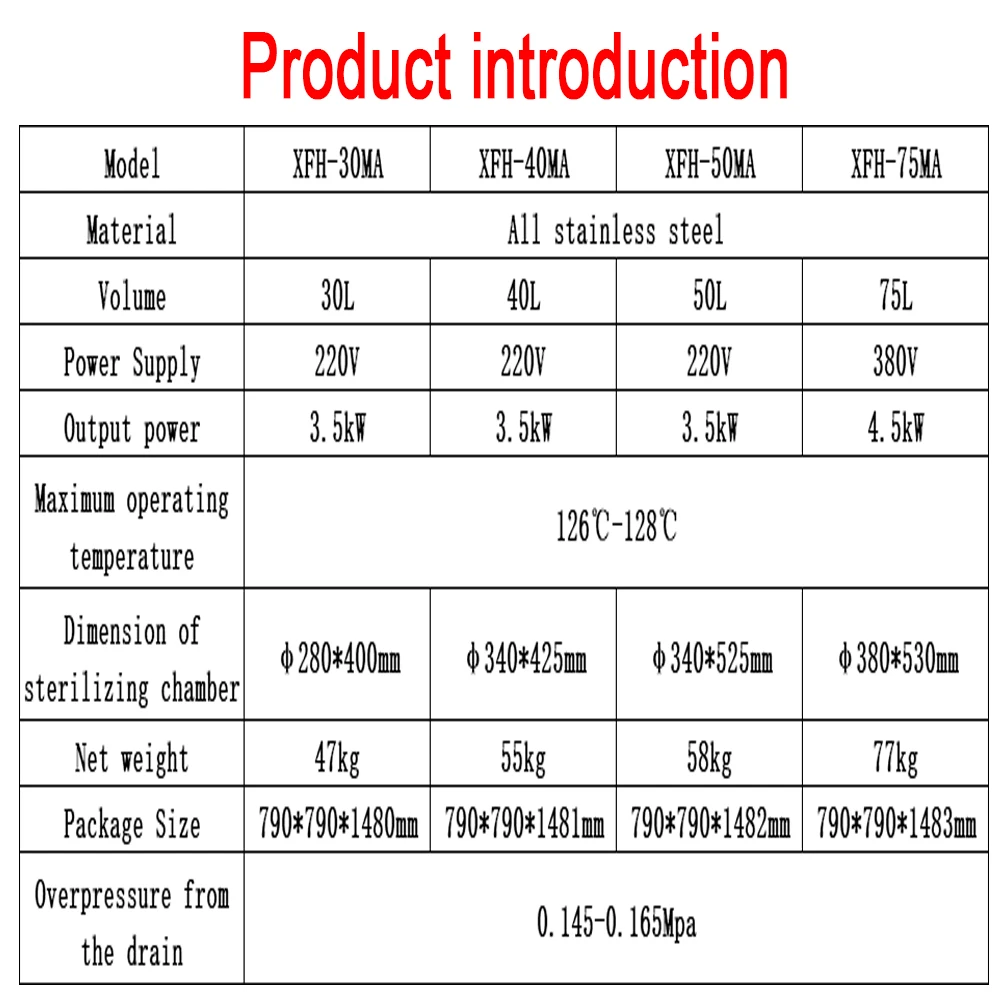

Model
|
Material
|
Volume
|
PowerSupply
|
Output power
|
Dimension of sterilizing charmber
|
Dimension
|
|
XFH-30MA
|
Full stainless
|
30L
|
220V
|
3.5kw
|
Ф300×330mm
|
580×580×1000mm
|
|
XFH-40MA
|
Full stainless
|
40L
|
220V
|
3.5kw
|
Ф350×450mm
|
1250×600×580mm
|
|
XFH-50MA
|
Full stainless
|
50L
|
220V
|
3.5kw
|
Ф350×520mm
|
1250×600×580mm
|
|
XFH-75MA
|
Full stainless
|
75L
|
380V
|
4.5kw
|
Ф400×580mm
|
1300×600×600mm
|
