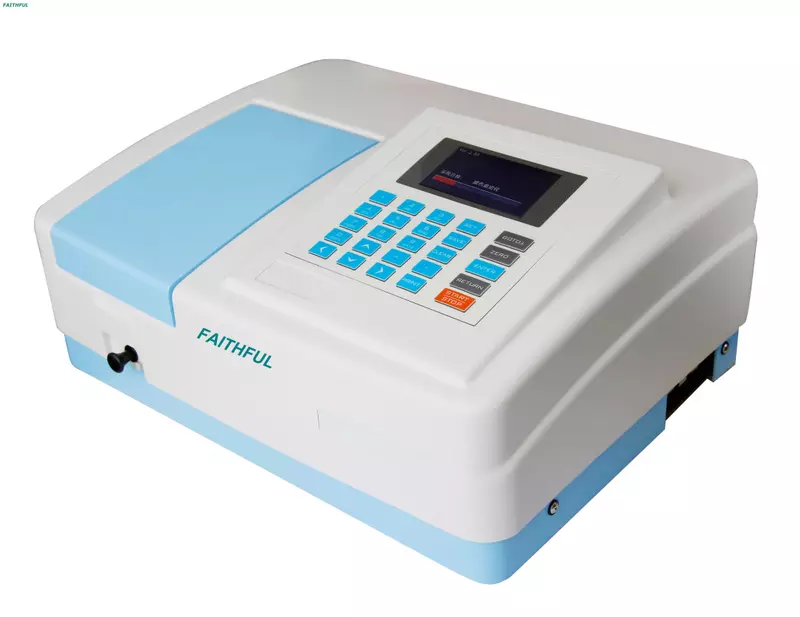

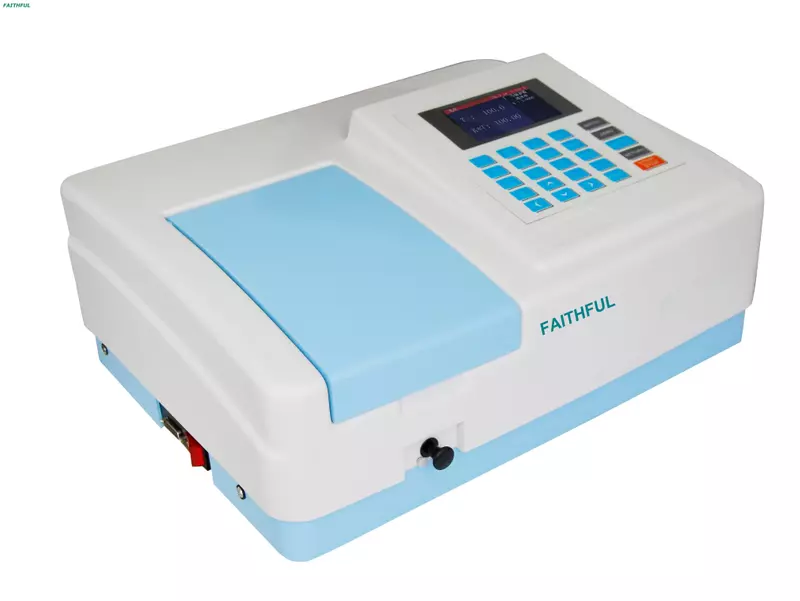

Spectrophotometer FUV-1800/FUV-1600/FV-1800/FV-1600

1.Large LCD screen(480*272 Dots)with 65 thousand true color and support U disk data saving.

2.Imported&Environmental Deuterlum lamp,proventing from Ozone inhalation.

3.Data output;Data can be exported to U disk (USB Output)

4.Print port:Instrument can connect PCL printing A4 paper (USB Port)

5.Adopted high-class grating with wholly hermetic light path design,to ensure the instrument has the super low stray light.

ETA 3 weeks

6.Upgrade package can be downloaded from AOE web with S/N,support U disk one-key upgrade

7.Real-tome monitoring the lifetime of Deuterium lamp and Tungsten lamp with advance system.

8.Pre-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system.

9.Wiht GLP self-check function,check the wavelength accuracy and Photometry accuracy,can provide test report and power-off protection.

Model	FUV-1800 FUV-1800PC	FUV-1600 FUV1600PC	FV-1800 FV-1800PC	FV-1600 FV-1600PC
Optical System	Single Beam,Grating 1200 lines/mm
Wavelength Range	190-1100nm		320-1100nm
Spectral Bandwidth	2nm	4nm	2nm	4nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.2nm
Photometric Accuracy	±0.002A（0-0.Abs), ±0.004A（0.5-1.0Abs), ±0.5%T（0-100%T）
Photometric Repeatability	0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs), ≤0.2%T （0-100%T）
Stray Light	≤0.04%T@360nm;220nm		≤0.04%T@360nm
Stability	±0.001A/h@500nm
Baseline Flatness	±0.002A
Noise	0.0005A
Display	65 thousand ture color TFT LCD (480*272）
Photometric Mode	T,A,C,E
Photometric Range	0-200% T,-0.301-3.0A
Detector	Silicon Photodiode
Light Source	Deuterium Lamp,Tungsten Lamp
Input	Membrane Keypad
Output	USB-A*2Print and data output USB-B Connect PC
Compartment	Optional 8Auto Cell holder, Solid Sample Holder, Micro Cell Holder, 100mm Cell Holder
