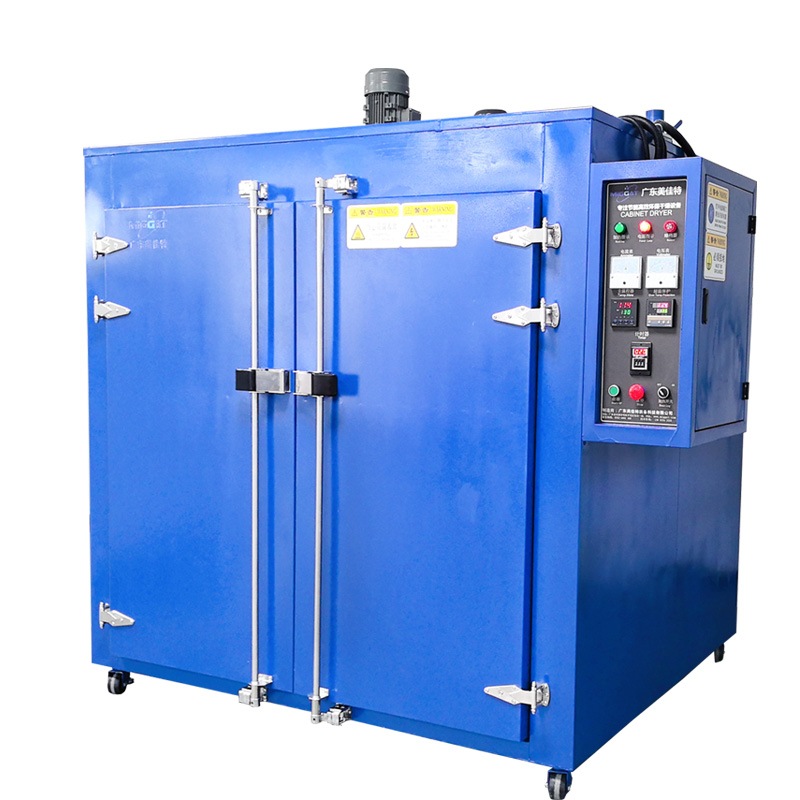

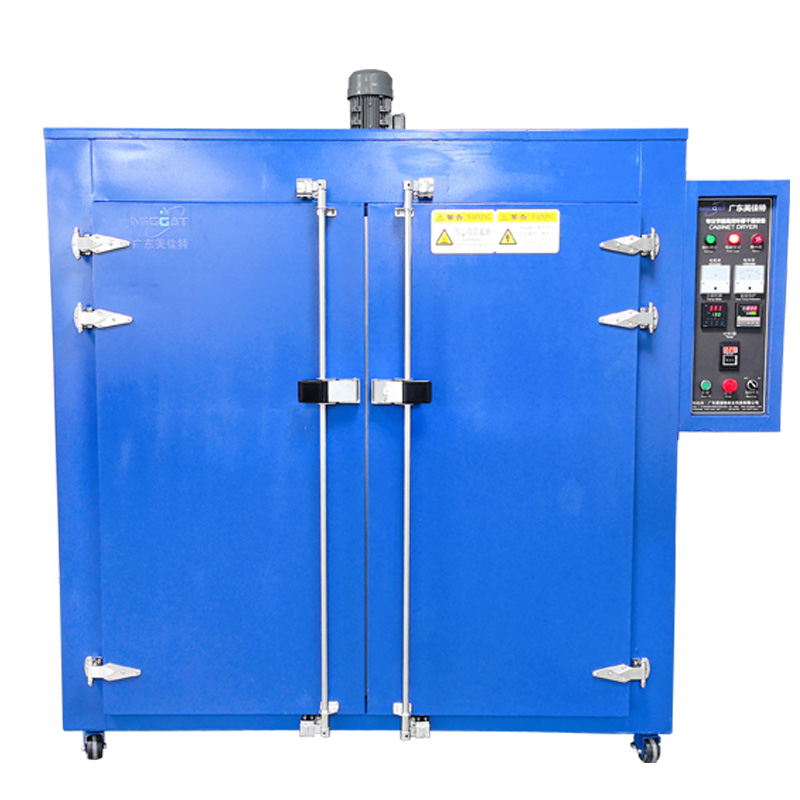

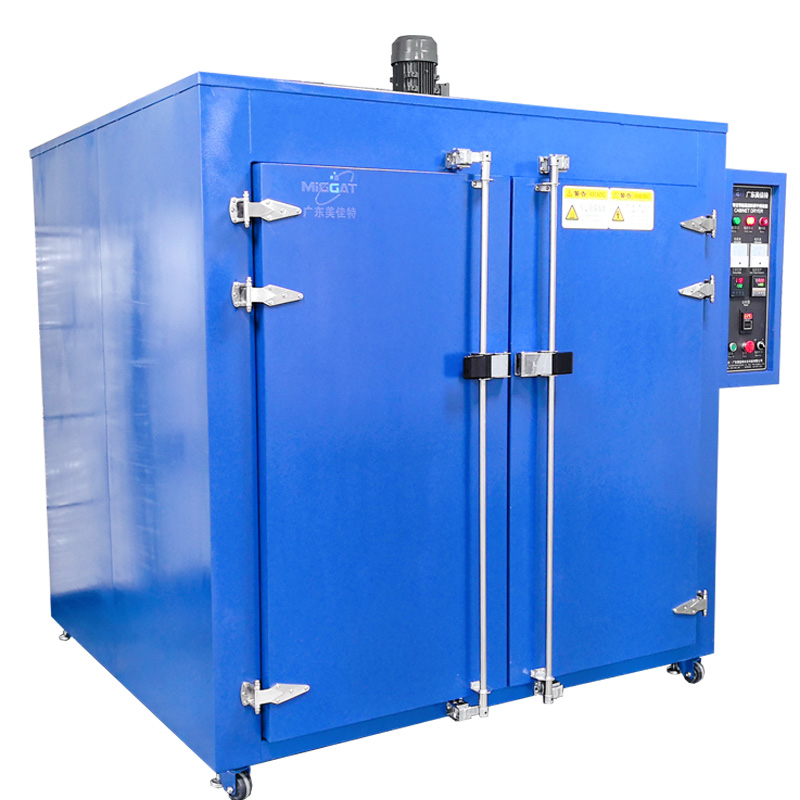

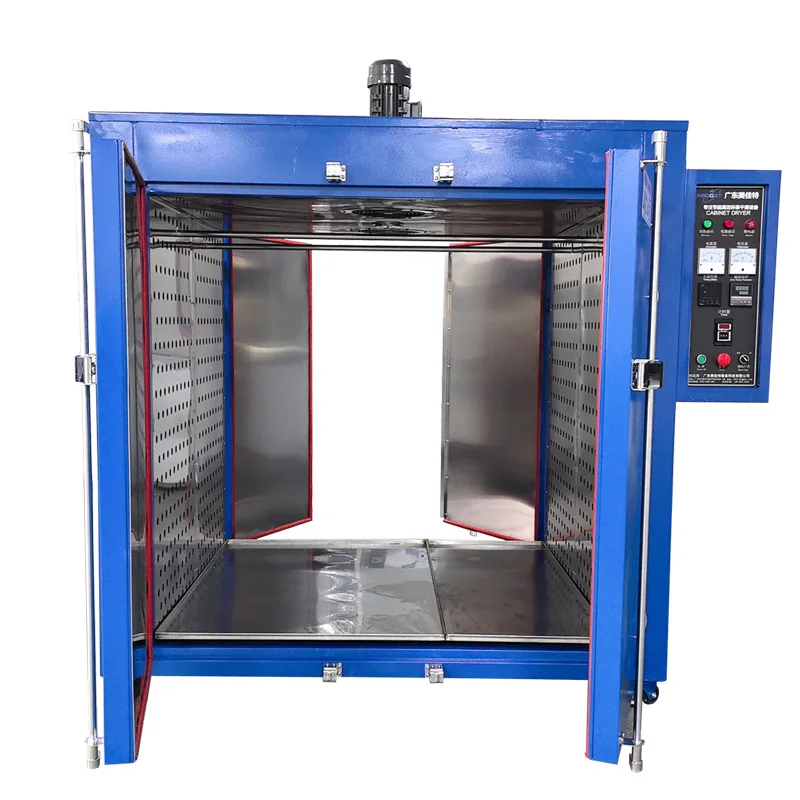

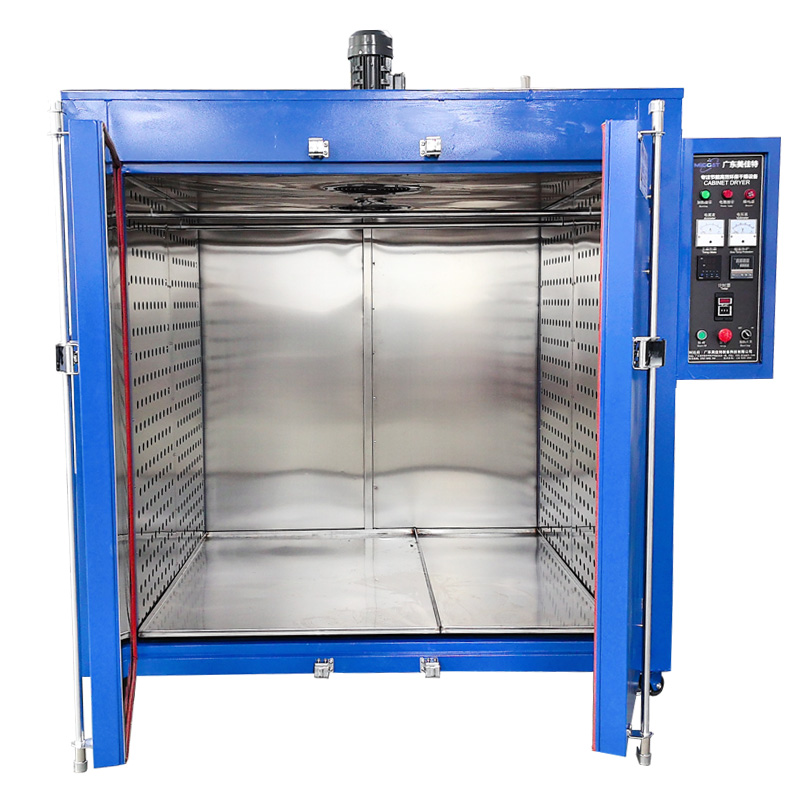

Hot Air Industrial Drying Ovens
Product descriptions from the supplier
The following table shows the standard oven size of our company. If there is no size that meets the requirements, you cancustomize the size, power, voltage, rack and tray as required.
| Item No. | Inner Size(mm) Width*Deep*Height |
Outer Size(mm) Width*Deep*Height |
Heating up Time | Accuracy
(°C) |
Uniformity
(°C) |
Voltage (V) |
Power (KW) |
| MJT-600 | 600*500*900 | 950*700*1650 | RT~100°C
About 10min |
±0.3 | ±1% | 220V
Or 380V |
10 |
| MJT-900 | 900*900*1500 | 1600*1200*2150 | 12 | ||||
| MJT-1200 | 1200*1000*1500 | 1900*1250*2050 | 15 | ||||
| MJT-1500 | 1500*900*1500 | 2200*1200*2200 | 18 |
TECHNICAL PARAMETER
| PROJECT | BASIC PARAMETER |
| INNER SIZE | W1200mm*D800mm*H1300mm |
| OUTER SIZE | W1560mm*D920mm*H2100mm |
| TEMPERATURE RANGE | Room temperature 0℃-250℃,set at any temperature |
| TEMPERATURE UNIFORMITY | No-load test at constant temperature for±1.5℃ |
| INNER MATERIAL | SUS 304 stainless steel |
| OUTER MATERIAL | Galvanized steel sheet, sheet thickness 1.5 mm appearance rust spray |
| INSULATION MATERIAL | Use 120K high quality thermal insulation cotton, six sides of thermal insulation, thermal insulation thickness of 80mm |
| PROTECTION DEVICE | Two-level over-temperature alarm protection, power reverse phase protection, leakage protection. |
| MACHINE FEATURE | Using MCGSTPC embedded man-machine interface touch screen, two-loop high-temperature high-precision K-type input, power supply 24V/DC, with intelligent power regulator American brand temperature control module, PID control system, with the right amount of PID parameters, the SCR module is connected with the phase-shifting trigger system and the main temperature control circuit is connected with the monitoring circuit, automatically control the temperature of each section of the furnace, and keep the temperature uniform throughout the furnace. Can set multi-stage temperature and multi-stage time control, set the program to run the junction speed alarm function, temperature accurate reading data 0.1 ° C. |
