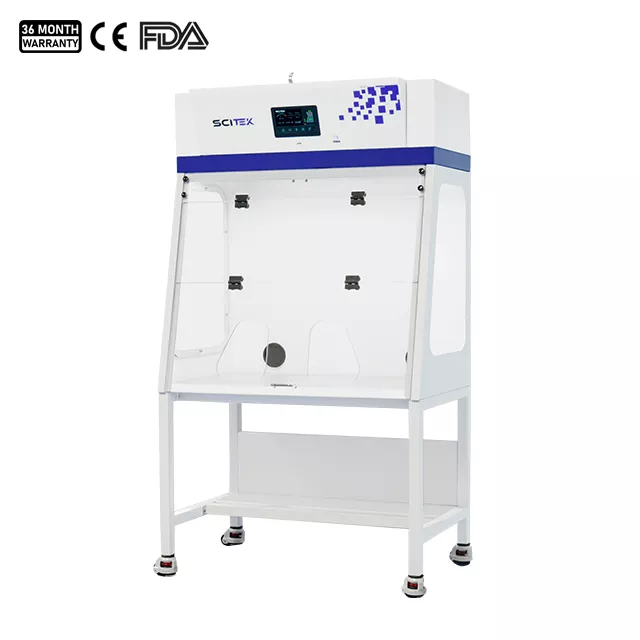

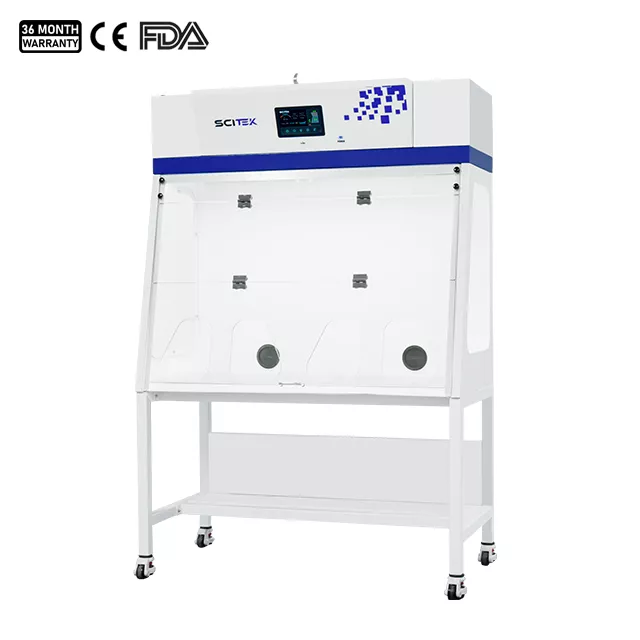

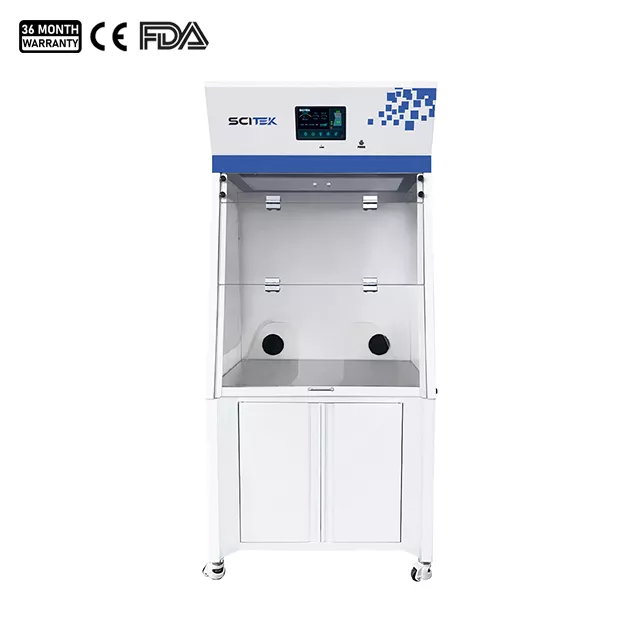

Ductless Fume Hood, TouchScreen

Category: Laboratory

Description

Model		FMH-1000DL	FMH-1200DL
External Size (WxDxH)(mm)		1000×620×1800	1200×620×1800
Internal Size (WxDxH)(mm)		980×540×775	1180×540×775
Max.Opening		650mm
Operation Surface Height		690mm
Control System		7-inch color touch screen,real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc
Airflow System	Airflow Velocity	0.4-0.6m/s, speed adjustable
Air filtration System	Filter	1pcs Pre-filter, Polyester fiber, washable	2pcs Pre-filter, Polyester fiber, washable
Air filtration System	Filter	1pcs Active Carbon filter	2pcs Active Carbon filter
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 Stainless Steel, Max.loading of worksurface: 70kg
	Front Window	Manual acrylic window
Electrical System	LED Lamp	16W×2
	Blower	DC Centrifugal blower, adjustable speed, low noise
	Consumption	60W	120W
	Power Supply	220V±10%, 50/60Hz; 110V±10%, 60Hz
Sound Emission		≤50dB(A)
Standard Accessory		1. Base Stand; 2. Active Carbon Filter; 3. Pre-Filter; 4. LED Lamp×2
Optional Accessory		1. Base Cabinet; 2. HEPA Filter; 3. Chemical filter; 4. Upgraded LED Lamp; 5. Ductless Fume Hood, TouchScreen
Net Weight		96kg	113kg
Gross Weight		138kg	160kg
Shipping Size (WxDxH)(mm)		1160×840×1320	1360×840×1320
Shipping Volume		1.3m³	1.5m³

Environment Condition:

1. Room temperature: 20-35℃;

2. Relative humidity 30-85%;

3. The number of air changes per hour in the laboratory is not less than 6 times;

4. Voltage fluctuation should be controlled within ±10%.

Standard with Active carbon filter.

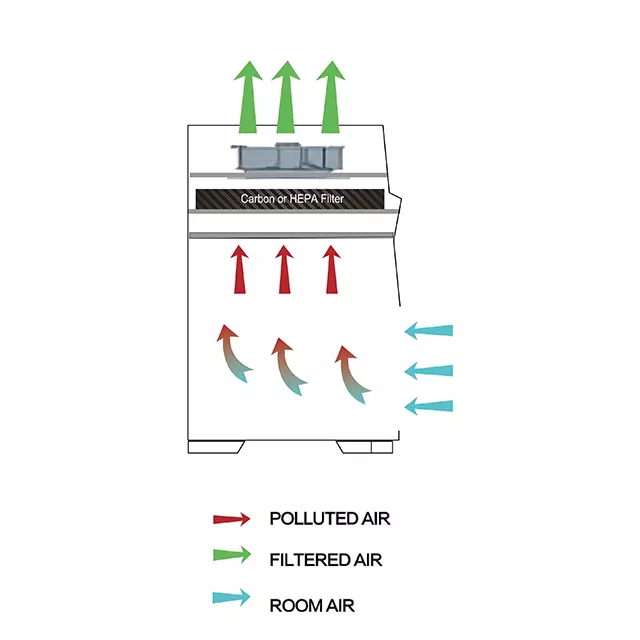

Effectively filter harmful gases, particles, dust, bacteria and other harmful substances produced in the experiment process to ensure the cleanliness of the laboratory environment. It protects the Operator and environment.
With a 7-inch LCD color touchscreen.
It displays real-time parameters such as air velocity, VOC concentration, temperature and humidity, and filter lifetime. This achieves excellent human-machine interaction.
With a real-time monitoring and alarm system.
Which can monitor the surface Air velocity and the saturation degree of the filter in real time, and inform the user in time when there is an abnormal situation, to ensure the safety of operation.
Low noise design.
Using high-quality DC centrifugal blower to ensure performance while providing users with a quiet working environment.
Humanized design.
Three-sided acrylic transparent material observation window, convenient for multi-angle observation.
Optional upgrade LED lamp can be choosed.
Ra98 Color Rendering Index, restore the true color of the experimental object, experimental result is more accurate. RG0 without blue light, protects the operator from blue light.
