Description

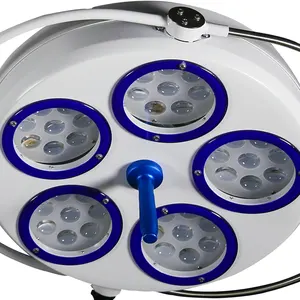

Portable operating Room light LED shadowless operating lamp

WITH SQUARE ARM

MODEL: 500D

• Utilizing the most advanced LED technology available.
• The MT-medical LED70 series of operating theatre lights have been designed to provide a high quality, shadowless beam with extremely low running costs.
• The new, slim, fully enclosed head with colour touchscreen digital controls is a perfect LED lighting solution complementing all surgical room.
• LEDs (light emitting diodes) have been around for a long time. Recently this technology has become leading-edge in the field of lighting – a breakthrough technological solution to the inherent problems of the incandescent light bulb.
• We have taken the technology and developed it further to provide high definition lighting solutions with no infrared, low environmental impact, high brightness, low power consumption, no toxic chemicals and a long operating life

• Automatic focus (Optional Electrical or Manual focus system)
• Warm and Cold light source (Osram LED bulbs)
• Germany Ondal Light arm with 360°rotation
• LCD tourch screen pannel or optional manual control panel

• Optional Sony camera system,There are insterted camera in central of light head and fixed in third light arm for choice Aluminium alloy cover : easily heat dissipation Technical Parameters 700mm head    and  500mm head Illuminance 160000/140000Lux. Color temperature 3500K-5500K (± 500) Ultraviolet light irradiance within40nm wave 0.002W/M2 Light Focus adjustment System manual or electric or auto focus (Optional) Light-adjusting mode continuous adjusting light , no grade dimmer system 50% Spot Diameter (D50) 280 mm / 230 mm 50% Spot Diameter (D50) 150mm/120mm Terperature at surgeon’s head ≤ 2°C CRI RA 95 R9 :90 R13 :92 Input Power 85W / 65W the adjusting range of Illumination% 25~100 Input power 220W Power of bulb (W) 1W * 60N / 1W *45N Bulb average life 50000h
